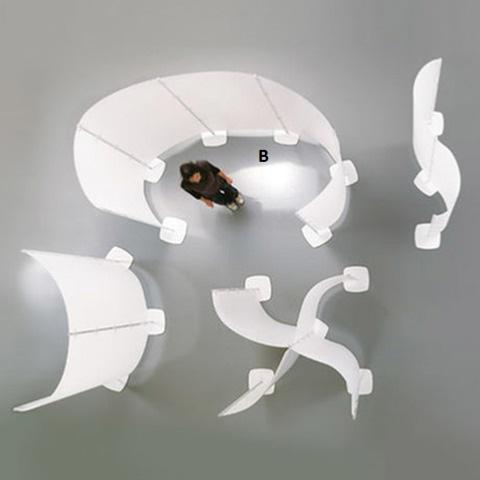

Ria Office Screen 5 Panel Curved Screen

Stunning modular office screen.
– Contact us for pricing
– Unit includes 6 x uprights and 5 x screen panel. See images for additional parts and ideas.

Stunning modular office screen.
– Contact us for pricing
– Unit includes 6 x uprights and 5 x screen panel. See images for additional parts and ideas.
– Uprights made from 9mm diameter steel rods and pairs of 8mm diameter horizontal rods electro welded together
– Uprights Matt white or silver grey epoxy powder coating
– The uprights have pairs of horizontal rods are spaced 375mm apart
– At the lower end of the uprights the rods are welded to a milled threaded bushing which allows it to be attatched to the base using an M8 countersunk screw. The bushing has a reference notch to ensure it is fitted correctly to the base
– Upper ends of the upright poles are finished off with translucent PETG stoppers
– Matt white or silver grey 6mm thick, epoxy powder coated steel base
– The base has a central hole to insert the upright and two notches so it can be assembled orthogonally or at an angle of 45 degrees in relation to upright.
– Flexible polycarbonate panel made of 0.75mm thick translucent two side satin finish.
– Shaped and perforated on the sides for assembly and coupling to the uprights.
– Fire resistant class 1
– Finish of panels allows excellent passage of light
– Also available are panels fitted with translucent high-tech polymer connectors each with a magnet inside to enable rapid assembly and disassembly of panels to the uprights. Additional cost.

Upright Height 180cm
Base Dimensions 35cm x 35cm
Screen Panel Dimensions Height 169.5cm x Width 100cm
Total Width 540cm

Contact us if you need any further information on office screens and our team will be pleased to help
